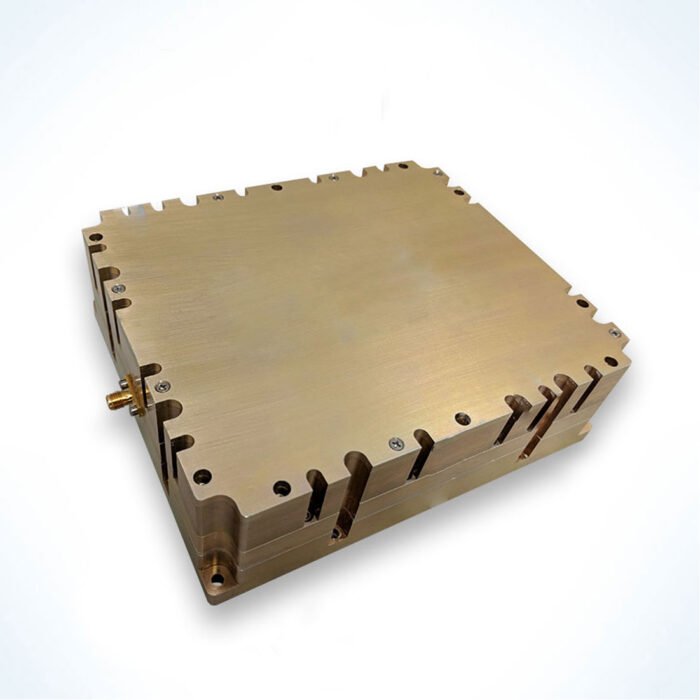

3-15 MHz 2kW SSPA

❖ The system is a complete 19-inch rack unit with 2 modules integrated for operation.
❖ The first module gives CW power output in the specified range of 2kW while the second
❖ module is being operated in pulse mode for a Pout of 20kW.
❖ The working specified frequency is 3.0-15.0 MHz with a band of 12 MHz
❖ Below is the specification table for our system developed.

S. No	Parameter	Specification
1.	Transmitter Type	Dual mode High Power HF SSPA Pulsed Mode: 20kW Peak power and CW Mode:2kW
2.	Quantity	As required
3.	Frequency	3MHz to 15MHz
4.	Bandwidth	12MHz
5.	Instantaneous Band Width	±100kHz
6.	Output Power	Pulsed Mode: Peak Power ≥20kW and <25kW @10% max duty (Max PW=400µS, Max PRF=10kHz) and CW Mode: 2kW in the entire range of frequency and temperature
7.	RF Input	0± 2dBm
8.	Max input power without damage	+10dBm
9.	Gain Flatness across the frequency	±1dB max
10.	Harmonics	-60dBc min
