Anti-Drone System Manpack

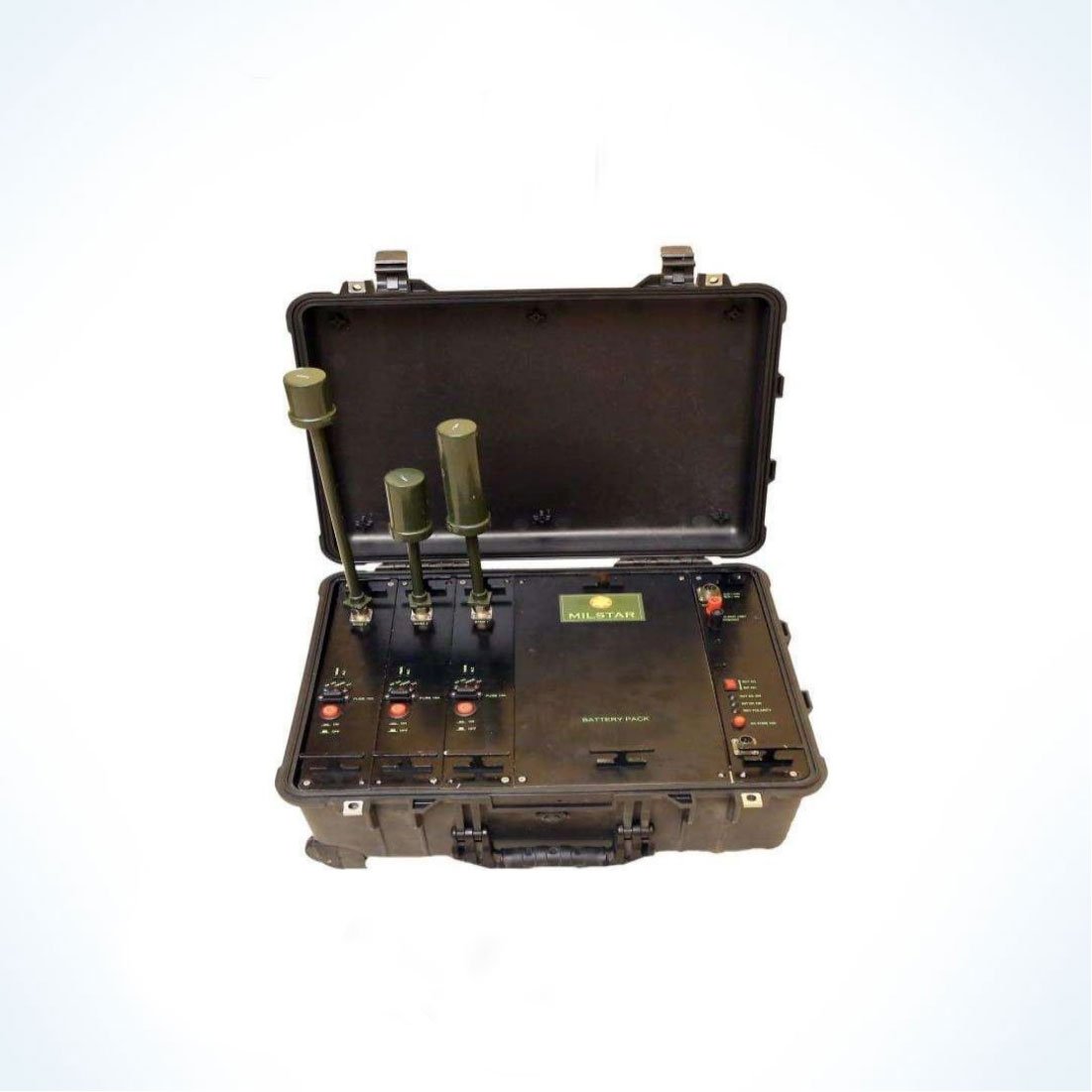

Portable Anti-Drone System

❖ The system is designed and inserted in the Pelican suitcase. It consists of 3 bands of power amplifiers
❖ and 3 types of Omni/directional antennas.
❖ The Jamming range of the system is up to 2kms.
❖ This system can be operated by a battery and also on an external DC supply

Category:

Enquiry about Portable Anti-Drone System

Description



S. No Description Specification
1. Frequency Range a. Band-1 : 1559-1610MHz (GPS L1)
b. Band-2 : 2400-2500MHz
c. Band-3 : 5700-5900MHz
2. Power Supply 28V DC Internal (Battery) backup for 1 hr
28V DC Internal
3. Antenna Omni or Directional with 3dBi gain
4. Indications DC ON. RF ON. VSWR, Thermal and low Battery
5. Operating Conditions Standard Indian Conditions
6. Weight 30kg(max)

Related products

Manpack Jammer

❖ The System consists of 3 bands of the power amplifier with two Omnidirectional antennas. ❖ The system operates on a battery 24V which is rechargeable. ❖ It is used for effective jamming of IEDs, Radio operated IEDs. ❖ System confirms to IP standard for usability. ❖ The operation of this system will be in the dense forest area for patrolling by the Indian army personnel. ❖ The system is designed and inserted in a backpack with miniature housing developed for the same. ❖ The antenna used is capable of bending completely in either direction To withstand the ruggedness required.
Read More

Classroom Jammer

❖ The system consists of 7 bands split from the power amplifier with separate patch antennas for the application. ❖ Effective power output from the system is maintained at 7W at the output to the antenna. ❖ The system is operated with a 24V battery and it can also be operated with a DC supply as well. ❖ The System confirms the standard IP terms. ❖ Effective range is confined to a small room area for the jamming application. ❖ The antennas are mounted on the same housing with all of them being connected to the power output from the power amplifier source. ❖ In the system the noise source being used is combining the synthesizer with PLL.
Read More

Anti-Drone System Manpack

❖ The system consists of 2 or 3 bands of power amplifiers with directional antenna. ❖ The effective jamming range of the system is up to 1.5kms. ❖ System operates on internal battery for up to 1Hr and also can be operated on external DC ❖ It can effectively jam “pre-fed flight path also” and negates the possible damage to own assets ❖ System confirms IP65 standards
Read More

Vehicle Jammer

❖ The system is comprised of multiple bands. Initially for the two bands in L and C respectively. ❖ The operating frequencies are 1.0-2.0 GHz and 5.7-5.9 GHz with a power ❖ output of 100W from each module. ❖ The size of the system is specified with a 2U rack unit. With all controls present. ❖ The operation of the system is done with a 24V battery unit.
S. No Description Specification
1. Frequency Range 1.0-2.0 GHz 5.7-5.9 GHz
2. Power Supply 24V Battery
3. Antenna Omnidirectional
4. Indications VSWR
5. Size Standard 2U module
6. Weight <15kg
7. Power Output 100W
Read More
